Машина:

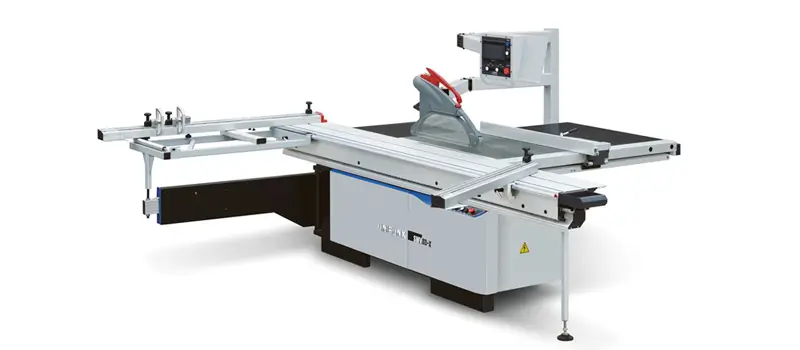

Sliding Table Saw

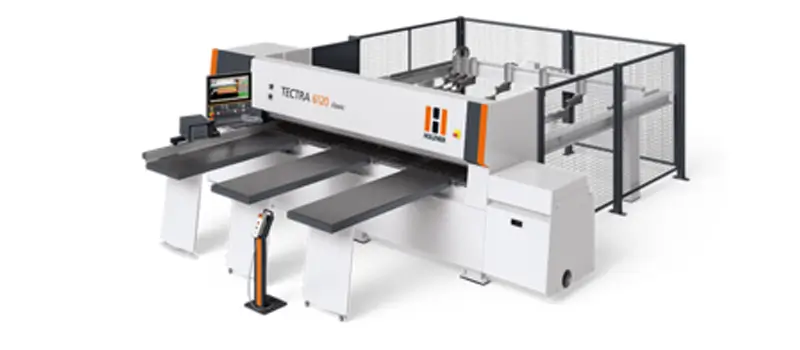

CNC Panel Saw
Scoring Saw blades
Материал зубов: HM (Tungsten Carbide Tipped Saw Blade) and PCD(Diamond Tipped Circular Saw Blade)
Особенности: Sundi offers industrial-grade scoring sawblades, including adjustable and conical types. Tip materials are available in both PCD and carbide. The blade surface features a chrome coating to resist resin buildup and prevent rust.
Нанесите материал: Laminated particleboard, MDF, plywood, veneered boards, melamine panels – typical laminated materials requiring pre-scoring.
Формы зубов: W(ATB),H(Hollow tooth)
Готовы разместить заказ? Свяжитесь с нами для получения подробных спецификаций, сроков изготовления и минимального количества заказа. Sundi гарантирует стабильные поставки и быструю доставку для удовлетворения ваших производственных потребностей.
- Обеспечение качества
- Обслуживание OEM/ODM
- Экономия средств
- Быстрая доставка
Описание

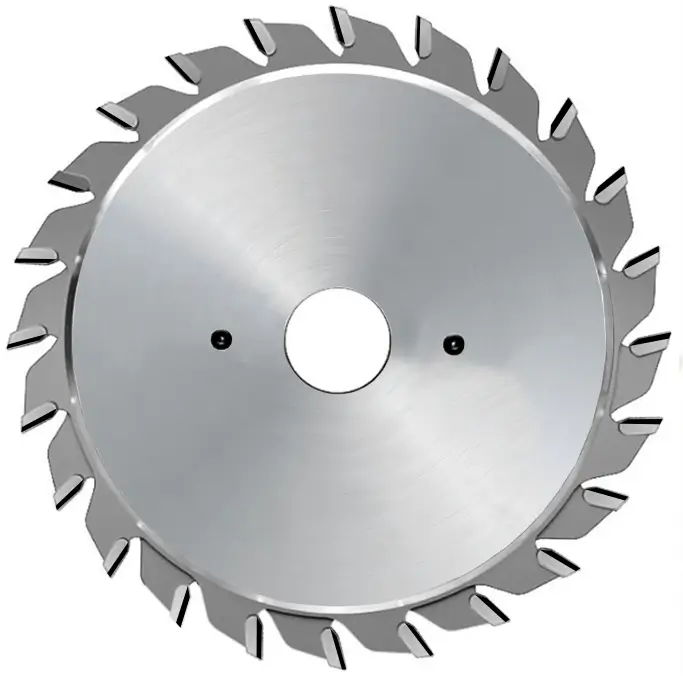

The scoring sawblade is positioned in front of the main sawblade and is used to make a shallow cut on laminated materials, creating a groove that prevents tearing during the main cut.
Our conical scoring sawblade consists of a single blade; by adjusting its height, the scoring width can be changed.
In contrast, the adjustable scoring sawblade is composed of two carbide-tipped blades, and the cutting width is adjusted by adding or removing shims between them.
This setup effectively prevents chipping on the bottom edge of the panel.
Explanation of Tooth Forms:
- F=Flat tooth
- T=Triple Chip Grind
- L=Teeth with left-hand bevels
- R=Teeth with right-hand bevels

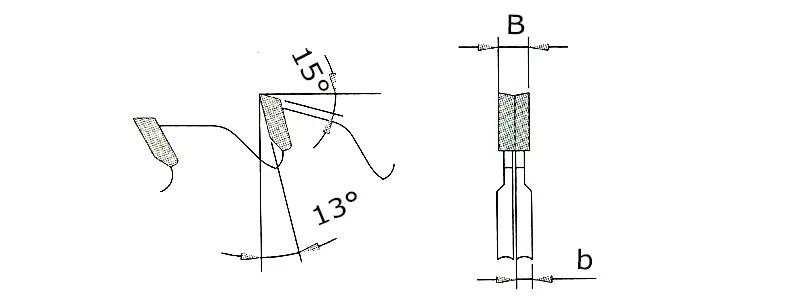

- H=Hollow tooth
- FC = Flat teeth with tapered sides
- TF= trapezoidal/flat teeth

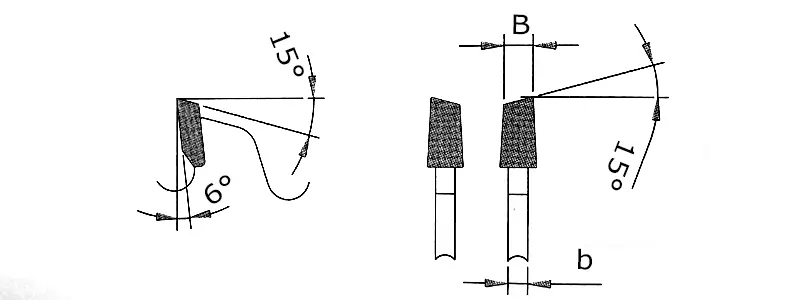

- W(ATB)=Alternate top bevel tooth
- WF= flat/alternate offset tooth
- FAS=flat teeth with alternating, chamfered teeth
- WC=Conical Tooth
- RRRL=Modified ATB with 3 right-hand bevels and 1 left-hand bevel
- LLLR=Modified ATB with 3 left-hand bevels and 1 right-hand bevel
- RLRLF= Hybrid ATB + Flat tooth combination
Технические характеристики:
Our Scoring Saw blades are available in various sizes. Below are some common sizes for your reference. If you need other specifications or custom shapes, please feel free to свяжитесь с нами..
TCT Scoring saw blades – Conical :
| Внешний диаметр (мм) | Диаметр отверстия (мм) | Толщина лезвия (мм) | Количество зубов | Форма зуба |
|---|---|---|---|---|
| 120 | 20/22 | 3.0-4.0 | 24 | W (ATB) |
| 125 | 22 | 3.4-4.4 | 24 | W (ATB) |
| 160 | 55 | 3.1-4.1 | 40 | W (ATB) |
| 160 | 55 | 3.9-4.9 | 40 | W (ATB) |
| 160 | 25.4 | 3.4-4.4 | 36 | W (ATB) |
| 160 | 30/55 | 3.4-4.4 | 40 | W (ATB) |
| 160 | 45 | 4.3-5.3 | 40 | W (ATB) |
| 160 | 55 | 4.3-5.3 | 36 | W (ATB) |
| 180 | 25.4/30 | 3.4-4.4 | 36/40 | W (ATB) |
| 180 | 30 | 3.9-4.9 | 36 | W (ATB) |
| 180 | 30/45/55 | 4.3-5.3 | 40 | W (ATB) |
| 180 | 45 | 4.7-5.7 | 36 | W (ATB) |
| 180 | 45 | 4.7-5.7 | 40 | W (ATB) |
| 200 | 45/50/65/75/80 | 4.3-5.3 | 40 | W (ATB) |
| 200 | 50 | 4.7-5.7 | 40 | W (ATB) |
TCT Scoring saw blades – Adjustable
| Внешний диаметр (мм) | Диаметр отверстия (мм) | Толщина лезвия (мм) | Количество зубов | Форма зуба |
|---|---|---|---|---|
| 100 | 20 | 2.8-3.6 | 24 | H |
| 120 | 20/22 | 2.8-3.6 | 24 | H |
PCD Scoring saw blades – Conical :
| Внешний диаметр (мм) | Диаметр отверстия (мм) | Толщина лезвия (мм) | Количество зубов | Форма зуба |
|---|---|---|---|---|
| 120 | 20/22 | 3.0-4.0 | 24 | W (ATB) |
| 125 | 22 | 3.4-4.4 | 24 | W (ATB) |
| 160 | 55 | 3.1-4.1 | 36 | W (ATB) |
| 160 | 25.4 | 3.4-4.4 | 36 | W (ATB) |
| 160 | 45 | 4.3-5.3 | 36 | W (ATB) |
| 160 | 55 | 3.9-4.9 | 36 | W (ATB) |
| 180 | 30 | 3.4-4.4 | 36 | W (ATB) |
| 180 | 30 | 3.9-4.9 | 36 | W (ATB) |
| 180 | 30/45 | 4.3-5.3 | 36 | W (ATB) |
| 180 | 45 | 4.7-5.7 | 36 | W (ATB) |
| 200 | 40/50/75 | 4.3-5.3 | 36 | W (ATB) |
| 200 | 50 | 4.7-5.7 | 36 | W (ATB) |
PCD Scoring saw blades – Adjustable
| Внешний диаметр (мм) | Диаметр отверстия (мм) | Толщина лезвия (мм) | Количество зубов | Форма зуба |
|---|---|---|---|---|
| 120 | 20/22 | 2.8-3.6 | 24 | H |
