4 Flutes Corner Radius End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S600 |
| Coating | NAC03 |
| Coating color | Black Grey |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

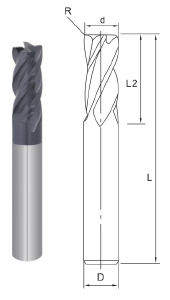

| 4 Flutes Corner Radius End Mill | Item Code | Flute Diameter | R | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
 | S600NC4-010-02 | 1.0 | 0.2 | 3 | 50 | 4 |
| S600NC4-020-03 | 2.0 | 0.3 | 6 | 50 | 4 | |
| S600NC4-030-10 | 3.0 | 1.0 | 8 | 50 | 4 | |
| S600NC4-040-10 | 4.0 | 1.0 | 11 | 50 | 4 | |
| S600NC4-050-10 | 5.0 | 1.0 | 13 | 50 | 6 | |
| S600NC4-060-20 | 6.0 | 2.0 | 15 | 50 | 6 | |
| S600NC4-080-10 | 8.0 | 1.0 | 20 | 60 | 8 | |
| S600NC4-100-15 | 10.0 | 1.5 | 25 | 75 | 10 | |
| S600NC4-120-20 | 12.0 | 2.0 | 30 | 75 | 12 | |
| S600NC4-160-10 | 16.0 | 1.0 | 40 | 100 | 16 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
