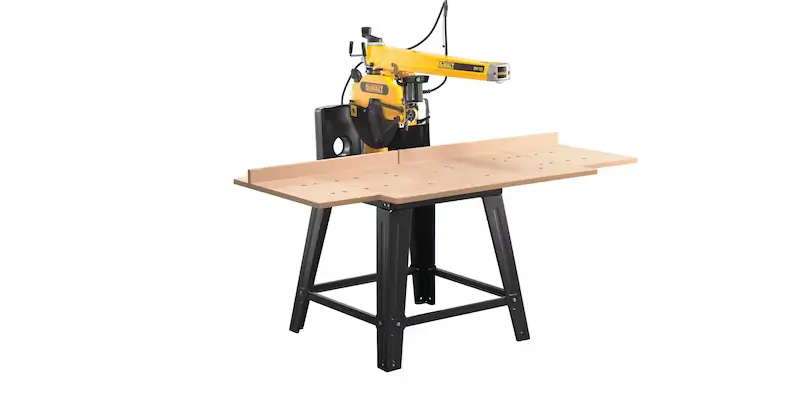

Machine: radial arm saws

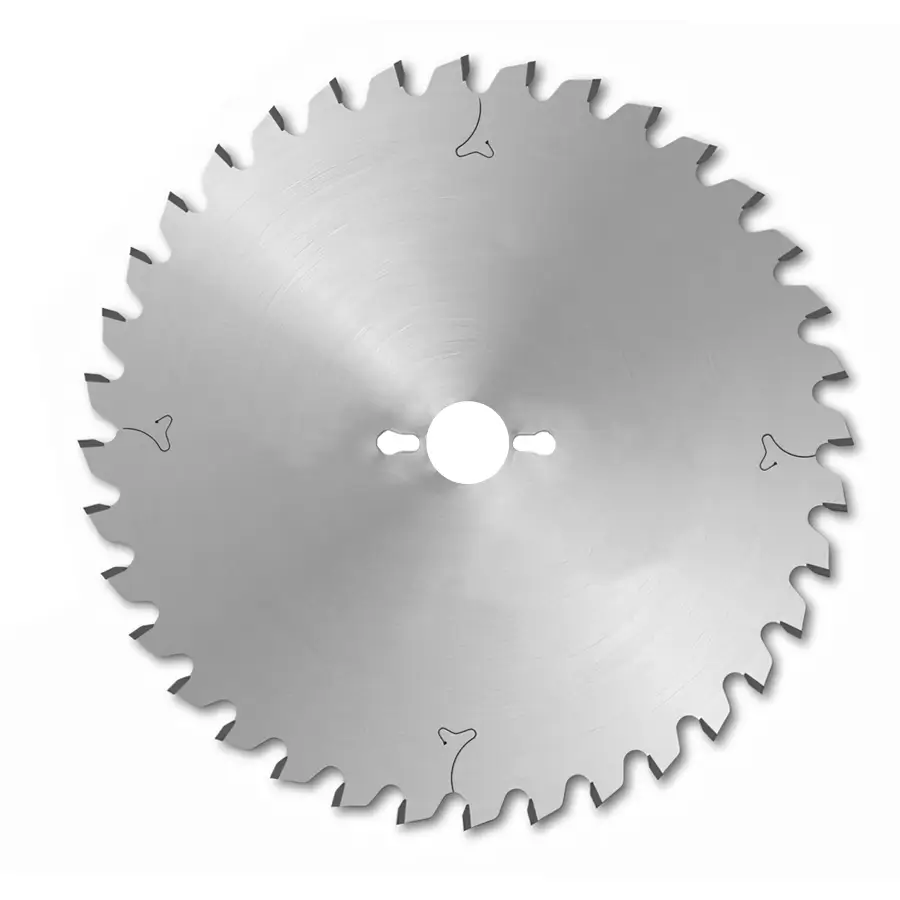

Circular Saw Blade For Radial Arm Saw
SUNDI Radial Arm Saw Blades offer two options: carbide-tipped teeth and PCD (Polycrystalline Diamond) teeth, providing an extended lifespan and ensuring highest cutting quality even at maximum cutting span.
Tooth material: TCT,PCD
Apply material: Softwood,Hardwood,Plywood,MDF.Particleboard
Tooth forms: W(ATB)
Ready to place an order? Contact us for detailed specifications, lead time, and minimum order quantity. Sundi ensures stable supply and fast delivery to support your production needs.
- Quality Assurance
- OEM/ODM Service
- Cost Saving
- Fast Delivery
Description

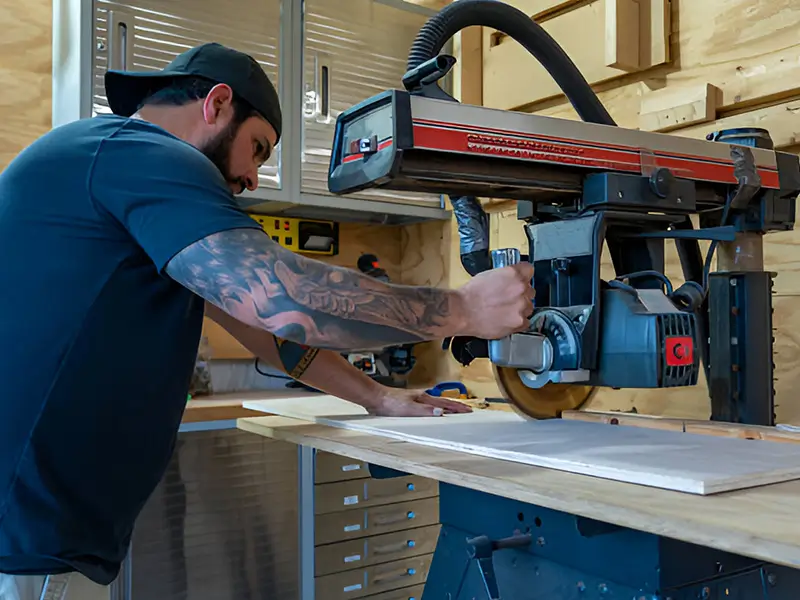

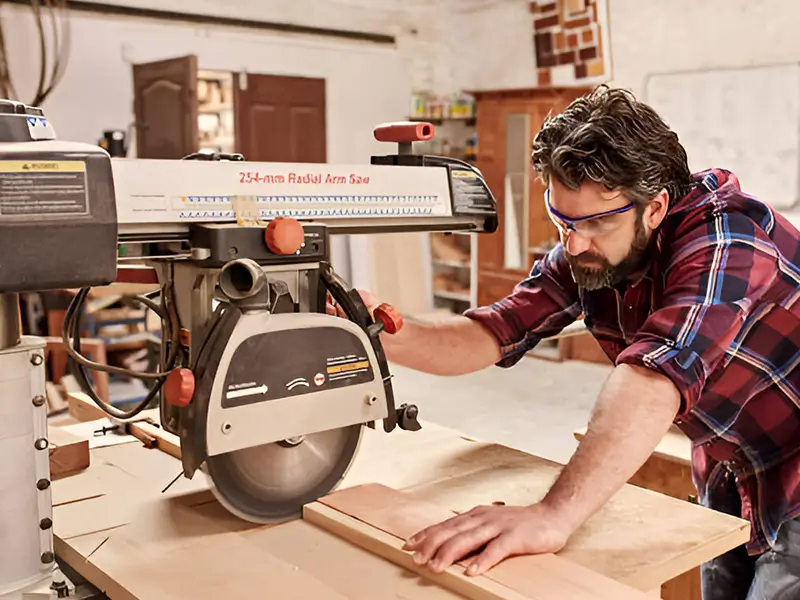

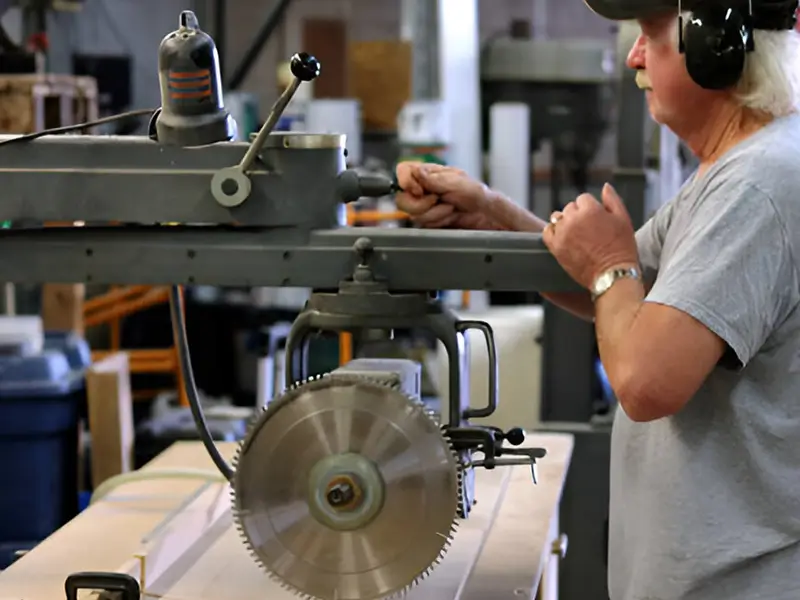

Circular Saw Blade for Radial Arm Saw is a disc shaped cutting tool designed specifically for Radial Arm Saw (RAS), features include:
Construction: Consists of a steel disk (base) and saw teeth on the edge, which can be made of PCD or carbide.
Adaptability: Designed according to the cantilevered structure of the radial arm saw, it supports multi-angle and multi-direction cutting (e.g. cross-cutting, beveling, grooving, etc.).
Explanation of Tooth Forms:
- F=Flat tooth
- T=Triple Chip Grind
- L=Teeth with left-hand bevels
- R=Teeth with right-hand bevels
- H=Hollow tooth
- FC = Flat teeth with tapered sides
- TF= trapezoidal/flat teeth
- W(ATB)=Alternate top bevel tooth
- WF= flat/alternate offset tooth
- FAS=flat teeth with alternating, chamfered teeth
- WC=Conical Tooth
- RRRL=Modified ATB with 3 right-hand bevels and 1 left-hand bevel
- LLLR=Modified ATB with 3 left-hand bevels and 1 right-hand bevel
- RLRLF= Hybrid ATB + Flat tooth combination
Specification:
Our Radial Arm Saw saw circular blades are available in various sizes. Below are some common sizes for your reference. If you need other specifications or custom shapes, please feel free to contact us..
| Outer Diameter | Bore Diameter | Blade Thickness | Number of Teeth | Tooth Form |
|---|---|---|---|---|
| 12inch （300mm） | 1inch | 4.2 | 36 | ATB(W) |
| 14inch（350mm） | 1inch | 4.2 | 42 | ATB(W) |
| 16inch（400mm） | 1inch | 4.2 | 40 | ATB(W) |
| 16inch（400mm） | 1inch | 4.2 | 48 | ATB(W) |
