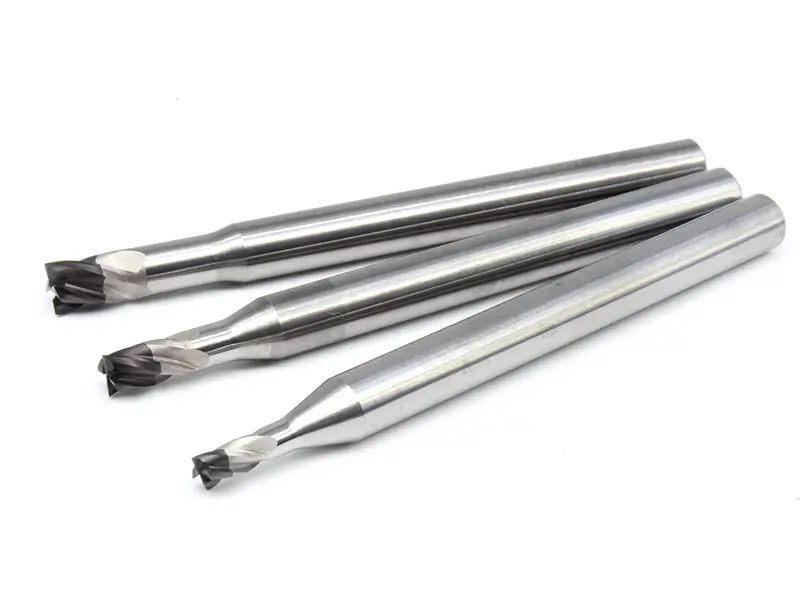

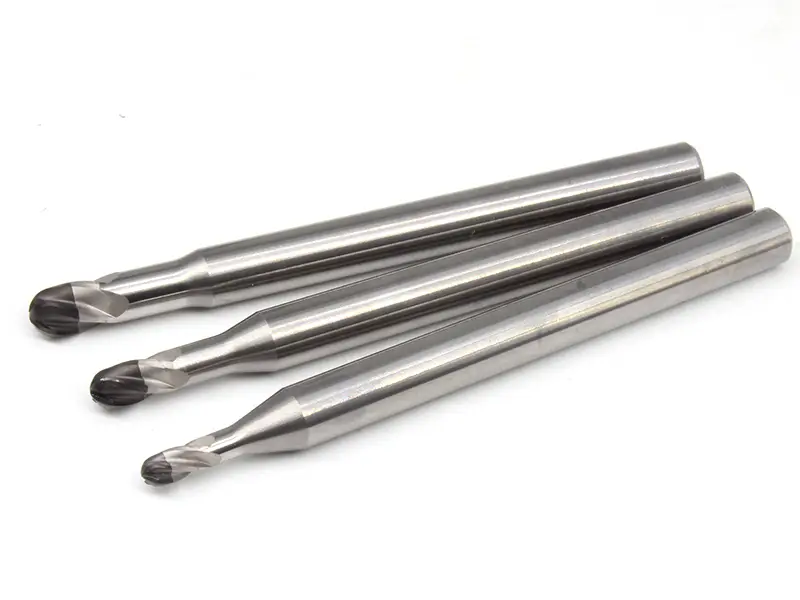

PCD Solid Nib End Mill
Engineered for ultimate rigidity and small-diameter machining excellence. Our custom PCD solid nib end mills feature a solid polycrystalline diamond head brazed to a carbide shank. This advanced design allows for complex multi-flute geometries, extremely small cutting diameters (from Ø1.0mm), and unmatched stability in highly abrasive materials.
Ideal Machining Operations
Precision Profiling & Corner Clearing Expertly designed for precision contouring, slotting, drilling, and cleaning up tight internal radii (rest machining) in high-tolerance components.
High-Speed Machining (HSM) & Mirror Finishing Optimized for light depth-of-cut finishing passes, delivering exceptional high-gloss and flawless mirror-like surface finishes.
Complex Cavity & Thin-Wall Milling Provides the ultimate structural stability required for chatter-free machining of complex pockets, deep cavities, and delicate thin-walled components.
- Extended Tool Life
- Reduced Cycle Time
- Consistent Precision
- Mirror Surface Finish
Core Advantages of Sundi PCD Solid Nib End Mill
Ultimate Structural Rigidity
The solid PCD head design eliminates the weak points of standard single-tip brazing, ensuring zero deflection and superior stability during high-speed small-diameter milling.
Complex Multi-Flute Geometries
Unlike standard brazed inserts, solid nibs allow for denser flute configurations (such as 3, 4, or 6 flutes) even on small diameters (1mm-6mm), significantly boosting your feed rates and efficiency.
Superior Small-Diameter Machining
Enables the manufacturing of small cutting diameters (down to Ø1.0mm) with extreme edge sharpness, ideal for intricate electronics, aerospace parts, and fine graphite details.
The Ideal PCD Tool Form
Representing the pinnacle of PCD tool design. A monolithic diamond cutting head allows for unrestricted, seamless helical geometries—just like solid carbide, but with the unmatched wear resistance of polycrystalline diamond.
Technical Specifications & Customization Capabilities
Below are our standard size ranges. Click here to download the full [Sundi PCD Milling Cutter Catalog], or [Contact Us] for special specifications and custom tooling solutions.
Recommended Machining Parameters
| Work Material | Grade | Cutting Speed(m/min) | Feed(mm/rev) | Depth of Cut(mm) |
|---|---|---|---|---|
| Al alloy(4-9%Si) | PCD010 | 800-2500 | 0.1-0.3 | 0.05-0.3 |
| Al alloy(9-14%Si) | PCD 010 PCD025 | 600-1300 | 0.1-0.3 | 0.05-0.3 |
| Al alloy(14-18%Si) | PCD 010 PCD025 | 300-600 | 0.1-0.3 | 0.05-0.3 |
| Tungsten Carbide | PCD025 PCD302 | 10-30 | 0.05-0.2 | 0.02-0.5 |
| Woods | PCD010 | 1000-5000 | 0.1-0.5 | 0.2-5.0 |
| Cu alloy | PCD010 | 600-1000 | 0.05-0.2 | 0.05-3.0 |
| Plastic ,FPR | PCD010 PCD 025 | 600-1000 | 0.05-0.25 | 0.05-3.0 |
| Graphite | PCD025 PCD302 | 600-1000 | 0.05-0.25 | 0.05-3.0 |
| Material | Cutting Speed VC(m/min) | Feed Rate (fz/mm/U) | Coolant | |||
|---|---|---|---|---|---|---|
| ∅ 4~6 | ∅ 7~11 | ∅ 12~20 | ||||
| Al-Alloys Si < 1% | 150 - 6000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Al-Alloys Si < 12% | 150 - 4000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Al-Alloys Si > 12% | 150 - 2000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Magnesium Alloys | 150 - 6000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Copper Alloys | 150 - 5000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Brass Alloys | 150 - 4000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Ti-Alloys | 50 - 400 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Graphite | 150 - 3000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| GFRP glass fibre composites | 150 - 3000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Dry, Air pressure | |
| CFRP carbon fibe composites | 150 - 4000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Dry, Air pressure | |
| PTFE | 150 - 2000 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Dry, Air pressure | |
| Acrylic | 150 - 1800 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
| Thermoplastics,Duroplastics | 150 - 1800 | 0.02 - 0.15 | 0.02 - 0.20 | 0.04 - 0.3 | Emulsion,MQL | |
Why Choosing us
Customization
We offer customized PCD milling cutters to match specific customer needs, including size, number of flutes.
Technical expertise
Our team has extensive technical expertise in cutting tools and machining processes, ensuring that our customers receive expert guidance and support.
Competitive pricing
We offer competitive pricing for our high-quality PCD milling cutter, helping to reduce tooling costs for our customers.
Exceptional customer service
We prioritize exceptional customer service and are dedicated to providing our customers with timely, accurate, and friendly support throughout the ordering process and beyond.
