CUSTOM CARBIDE END MILLS

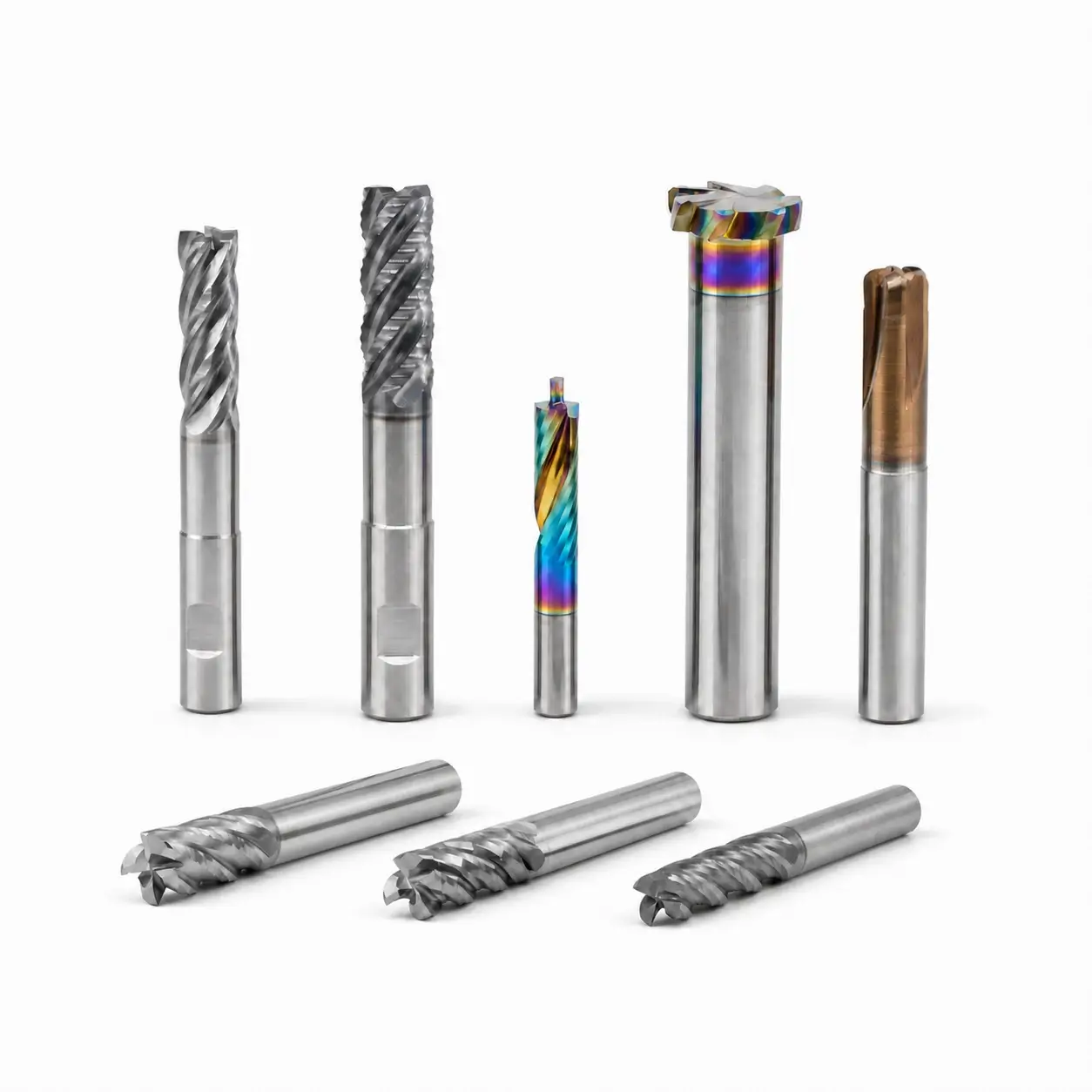

Custom Carbide End Mills Made for Your Part
Need a tool that is not in the standard range? Send your drawing and tell us the material, operation, reach and holder. We check the cutting shape, flute design and key dimensions needed for your job.
Why a Standard End Mill May Not Fit
A standard tool may not reach the feature, clear the part or cut the material in the right way.
To Get Started:Share the drawing, material, operation, key dimensions and reach or holder requirements.
- Custom profiles and radii
- Flute design matched to the operation
- Reach for deep or obstructed features
- Dimensions defined from your drawing
WHAT TO SEND
What to Send Us
Send these details with your drawing so we can understand the tool you need.
Part Drawing or Feature
Show the feature you need to machine.
Workpiece Material
Tell us what material you are cutting.
Operation
Tell us whether you are profiling, slotting, finishing or doing another operation.
Key Dimensions
Mark the dimensions that control the tool shape.
Reach and Clearance
Show how far the tool must reach and what it must clear.
Holder or Spindle
Include the holder or spindle information when space is limited.
TOOL DESIGN
Build the Tool Around Your Part
Your drawing and application details help define the cutting shape, flute design, reach and key dimensions.
Set the Cutting Shape
Use the drawing to define the cutting profile, radius and flute design.
Set the Reach and Clearance
Check the reach, neck clearance and space around the holder or spindle.
KEY FEATURE CHECK
Check the Features That Matter
We focus on the tool form, key dimensions and cutting features shown on your drawing.
Check the Tool Form
Compare the profile, radius and flute design with the drawing.
Check Key Dimensions
Review the dimensions, reach and access needed for the application.
CUSTOM END MILL OPTIONS
Custom Options for Your Job
The drawing and cutting conditions help determine which options fit your job.
Specialized Radii
Add the required radius to the drawing.
Flute Design Options
Include the material and cutting operation.
Extended Reaches
Show the reach and available clearance.
Key Tool Dimensions
Mark the dimensions that control the tool form.
AFTER YOU SUBMIT
What Happens Next
We look at your drawing and the details you send.
We Check Your Details
We look at the feature, material, operation and dimensions you provide.
We Clarify Missing Information
If something important is missing, we ask for it before moving forward.
APPLICATION SUPPORT · VERIFIED IN PRODUCTION
Custom End Mill Case: 60% Longer Tool Life

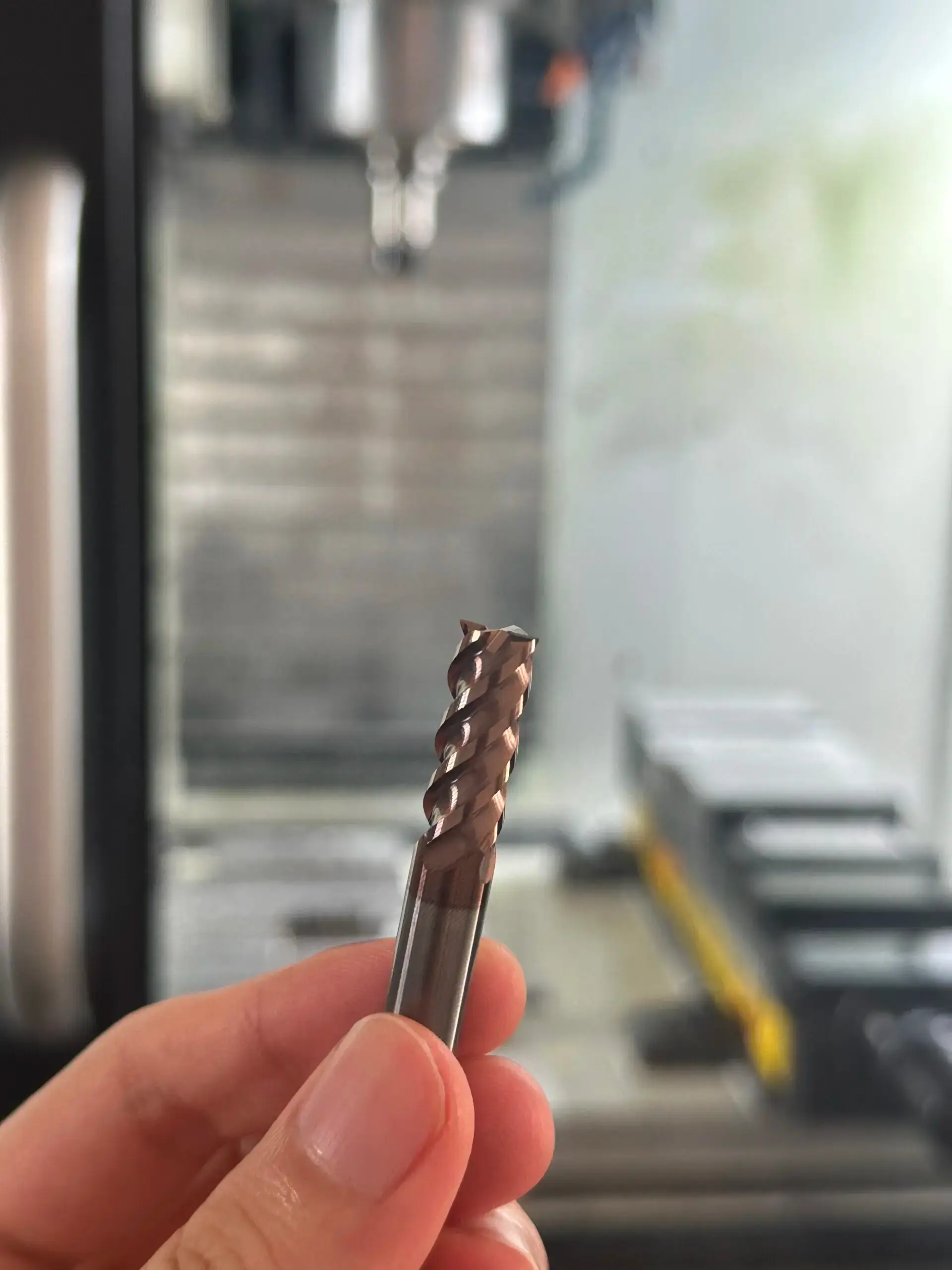

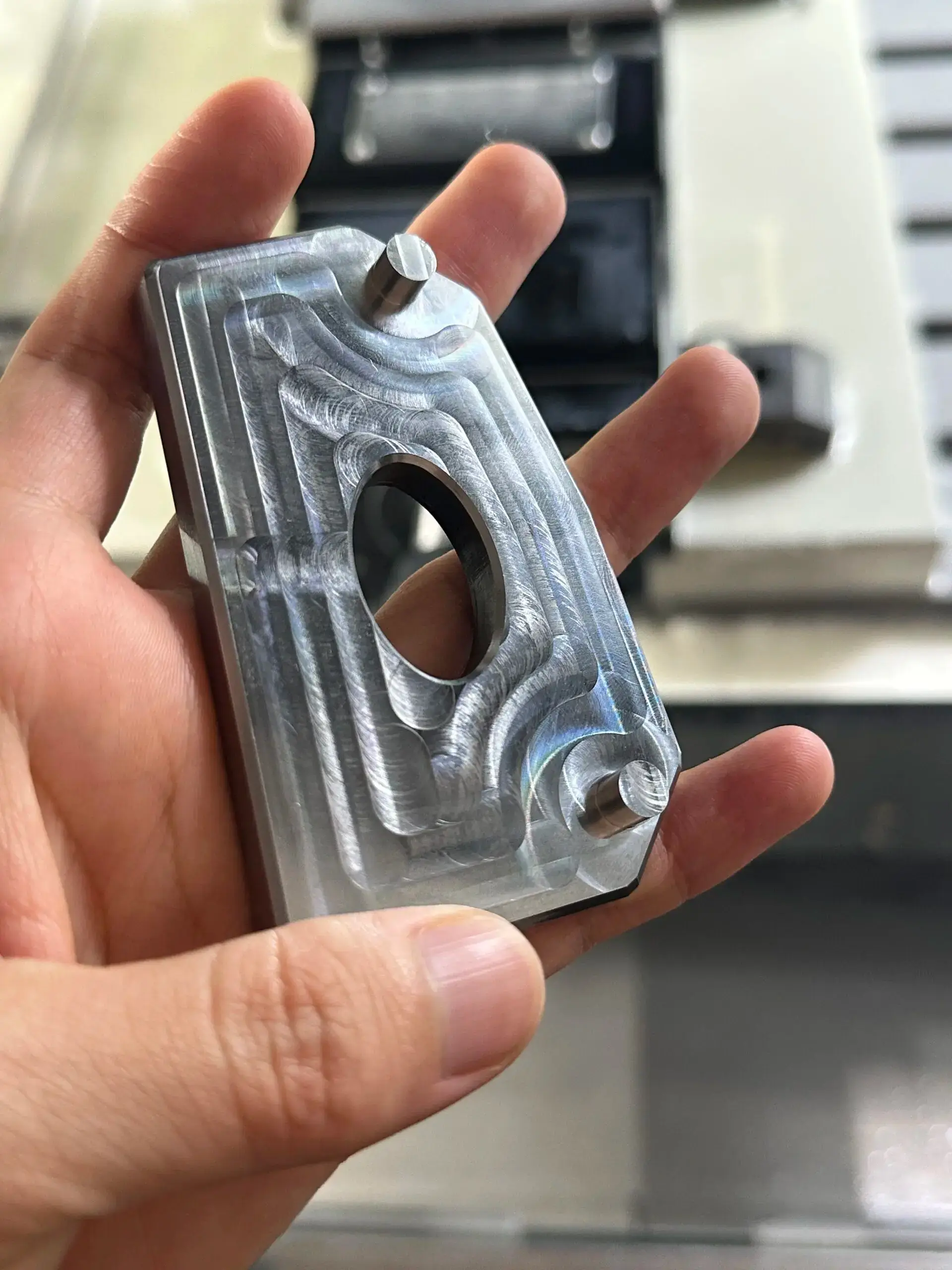

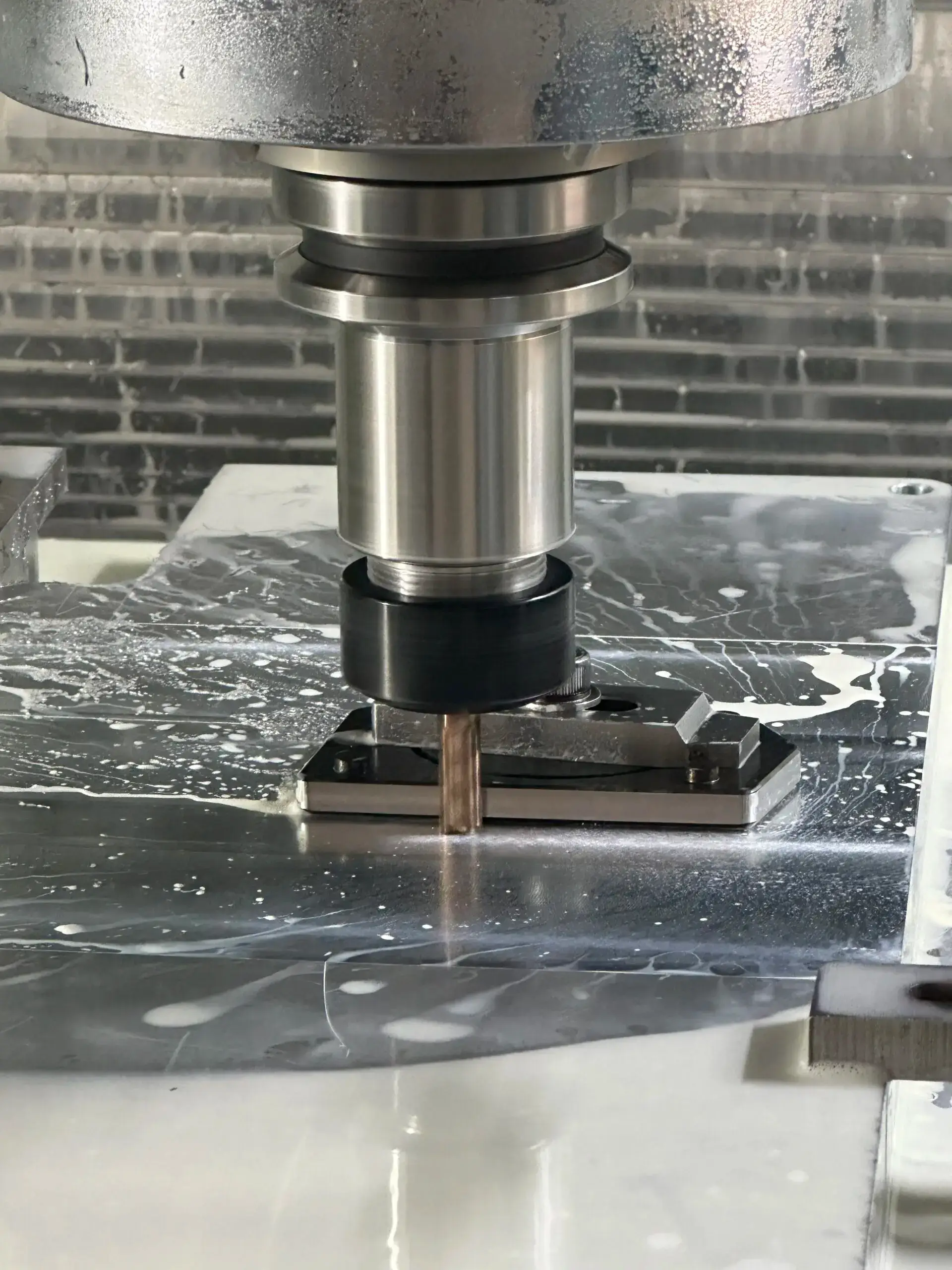

A custom ultra-fine-grain carbide end mill was qualified on the customer’s machining center for an HRC 58 workpiece application.
