Workpiece Material

Specification and Application

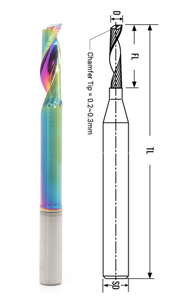

Single Flute Milling Cutter	Item Code	D [mm]	FL[mm]	EL[mm]	TL[mm]	SD[mm]
	AL550SEL1-0312	3	12	-	60	8
	AL550SEL1-0412	4	12	-	60	8
	AL550SEL1-0414	4	14	35	80	8
	AL550SEL1-0416	4	16	45	100	8
	AL550SEL1-0512	5	12	-	60	8
	AL550SEL1-0514	5	14	35	80	8
	AL550SEL1-0516	5	16	45	100	8
	AL550SEL1-0612	6	12	-	60	8
	AL550SEL1-0614	6	14	35	80	8
	AL550SEL1-0616	6	16	45	100	8
	AL550SEL1-0820	8	20	45	80	8
	AL550SEL1-0830(100)	8	30	70	100	8
	AL550SEL1-0830(120)	8	30	80	120	8
	AL550SEL1-1030(100)	10	30	70	100	8
	AL550SEL1-1030(120)	10	30	80	120	8
	AL550SEL1-1230	12	30	70	100	8
Single Flute Milling Cutter	Item Code	D h7[mm]	FL[mm]	TL[mm]		SDh6[mm]
	AL550SCA1-D315	3.175	15	38		3.175
	AL550SCA1-D325	3.175	25	50		3.175
	AL550SCA1-D342	3.175	42	70		3.175
	AL550SCA1-0425	4.0	25	50		4
	AL550SCA1-0442	4.0	42	70		4
	AL550SCA1-0452	4.0	52	80		4
	AL550SCA1-0522	5.0	22	50		5
	AL550SCA1-0532	5.0	32	60		5
	AL550SCA1-0542	5.0	42	70		5
	AL550SCA1-0552	5.0	52	80		5
	AL550SCA1-0625	6.0	25	50		6
	AL550SCA1-0632	6.0	32	60		6
	AL550SCA1-0642	6.0	42	70		6
	AL550SCA1-0652	8	52	80		6
	AL550SCA1-0828	8	28	70		8
	AL550SCA1-0832	8	32	80		8
	AL550SCA1-0842	8	42	90		8
	AL550SCA1-0852	8	52	100		8
	AL550SCA1-1025	10	25	70		10
	AL550SCA1-1042	10	42	90		10
	AL550SCA1-1052	10	52	100		10
	AL550SCA1-1062	10	62	110		10
	AL550SCA1-1232	12	32	70		12
	AL550SCA1-1242	12	42	90		12
	AL550SCA1-1252	12	52	100		12
	AL550SCA1-1262	12	62	110		12
