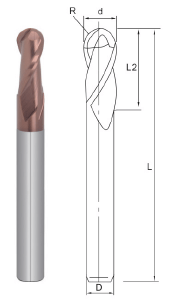

Long Shank Ball Nose End Mill/2 Flutes
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S550 |
| Coating | TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |
| Long Shank Ball Nose End Mill/2 Flutes | Item Code | Radius | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
 | S550BLS2-R0.5 | R0.5 | 2 | 75 | 4 |
| S550BLS2-R1.00 | R1.00 | 4 | 75 | 4 | |
| S550BLS2-R2.00 | R2.00 | 8 | 75 | 4 | |
| S550BLS2-R4.00 | R4.00 | 16 | 75 | 8 | |
| S550BLF2-R1.00 | R1.00 | 4 | 100 | 6 | |
| S550BLF2-R2.00 | R2.00 | 8 | 100 | 6 | |
| S550BLF2-R4.00 | R4.00 | 16 | 100 | 8 | |
| S550BLJ2-R4.00 | R4.00 | 16 | 150 | 8 | |
| S550BLJ2-R8.00 | R8.00 | 32 | 150 | 16 | |
| S550BLK2-R6.00 | R6.00 | 24 | 200 | 12 |
