Micro Diameter Miniature 2 Flutes Rib Ball Nose End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S550 |
| Coating | TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

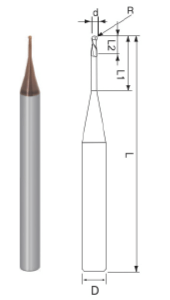

| Micro Diameter Miniature 2 Flutes Rib Ball Nose End Mill | Item Code | Radius | Flute Length | Effective Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
 | S550MDGBT2-00201 | R0.1 | 0.4 | 1.0 | 50 | 4 |
| S550MDGBT2-00302 | R0.15 | 0.6 | 2.0 | 50 | 4 | |
| S550MDGBT2-00404 | R0.2 | 0.6 | 4.0 | 50 | 4 | |
| S550MDGBT2-00504 | R0.25 | 0.8 | 4.0 | 50 | 4 | |
| S550MDGBT2-00604 | R0.3 | 1.0 | 4.0 | 50 | 4 | |
| S550MDGBT2-00608 | R0.3 | 1.0 | 8.0 | 50 | 4 | |
| S550MDGBT2-00804 | R0.4 | 1.2 | 4.0 | 50 | 4 | |
| S550MDGBT2-00808 | R0.4 | 1.2 | 8.0 | 50 | 4 |
