4 Flutes Ball Nose End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S900 |
| Coating | H-TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Read Online |

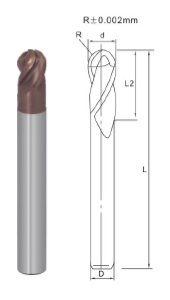

| 4 Flutes Ball Nose End Mill | Item Code | Radius | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
 | S900BT4-R0.5 | R0.5 | 2.0 | 50 | 4 |
| S900BT4-R1.00 | R1.00 | 4.0 | 50 | 4 | |
| S900BT4-R1.50 | R1.50 | 6.0 | 50 | 4 | |
| S900BT4-R2.00 | R2.00 | 8.0 | 50 | 4 | |
| S900BT4-R2.50 | R2.50 | 10.0 | 50 | 6 | |
| S900BT4-R3.00 | R3.00 | 12.0 | 50 | 6 | |
| S900BT4-R3.50 | R3.50 | 14.0 | 60 | 8 | |
| S900BT4-R4.00 | R4.00 | 16.0 | 60 | 8 | |
| S900BT4-R5.00 | R5.00 | 20.0 | 75 | 10 | |
| S900BT4-R6.00 | R6.00 | 24.0 | 75 | 12 |
