Long Shank 4 Flutes Corner Radius End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S900 |
| Coating | H-TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Read Online |

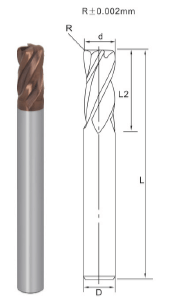

| Long Shank 4 Flutes Corner Radius End Mill | Item Code | Flute Diameter | R | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
 | S900NCL4-040-05 | 4.0 | 0.5 | 8 | 75 | 4 |
| S900NCL4-060-05 | 6.0 | 0.5 | 12 | 75 | 6 | |
| S900NCL4-080-05 | 8.0 | 0.5 | 16 | 75 | 8 | |
| S900NCF4-040-05 | 4.0 | 0.5 | 8 | 100 | 4 | |
| S900NCF4-060-05 | 6.0 | 0.5 | 12 | 100 | 6 | |
| S900NCF4-080-10 | 8.0 | 1.0 | 16 | 100 | 8 | |
| S900NCF4-100-10 | 10.0 | 1.0 | 20 | 100 | 10 | |
| S900NCF4-120-10 | 12.0 | 1.0 | 24 | 100 | 12 | |
| S900NCJ4-060-10 | 6.0 | 1.0 | 12 | 150 | 6 | |
| S900NCJ4-120-10 | 12.0 | 1.0 | 24 | 150 | 12 |
