PCD Ball-Nose End Mill Two Flutes with a Straight Angle
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | Ball nose · 2 flutes |
| Axial angle | Straight |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

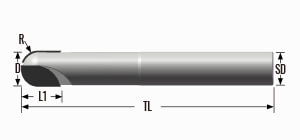

| Tool drawing | Order No. | D h7 mm | R mm | L1 mm | TL mm | SD h6 mm | Z flutes |
|---|---|---|---|---|---|---|---|
 | M-TPB-S2S-004 | 4 | 2 | 2 | 60 | 4 | 2 |
| M-TPB-S2S-006 | 6 | 3 | 3 | 60 | 6 | 2 | |
| M-TPB-S2S-008 | 8 | 4 | 4 | 70 | 8 | 2 | |
| M-TPB-S2S-010 | 10 | 5 | 5 | 80 | 10 | 2 | |
| M-TPB-S2S-012 | 12 | 6 | 6 | 80 | 12 | 2 | |
| M-TPB-S2S-014 | 14 | 7 | 7 | 100 | 14 | 2 | |
| M-TPB-S2S-015 | 15 | 7.5 | 7.5 | 100 | 16 | 2 | |
| M-TPB-S2S-016 | 16 | 8 | 8 | 100 | 16 | 2 | |
| M-TPB-S2S-018 | 18 | 9 | 9 | 100 | 18 | 2 | |
| M-TPB-S2S-020 ◊ | 20 | 10 | 10 | 110 | 20 | 2 |
◊ The shank material can be HSS for the marked items.
