PCD End Mill Long Blade Four Flutes (Positive Angle)
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | End mill · 4 flutes |
| Axial angle | Positive · +4° |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

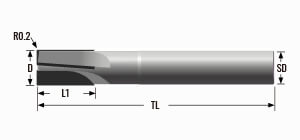

| Tool drawing | Order No. | D h7 mm | L1 mm | TL mm | SD h6 mm | Z flutes | a angle |
|---|---|---|---|---|---|---|---|
 | M-TPE-L4P-016 | 16 | 18 | 85 | 16 | 4 | +4° |
| M-TPE-L4P-016L105 | 16 | 20 | 105 | 16 | 4 | +4° | |
| M-TPE-L4P-020 ◊ | 20 | 18 | 85 | 20 | 4 | +4° | |
| M-TPE-L4P-020L105 ◊ | 20 | 20 | 105 | 20 | 4 | +4° | |
| M-TPE-L4P-022 ◊ | 22 | 18 | 100 | 22 | 4 | +4° | |
| M-TPE-L4P-022L110 ◊ | 22 | 20 | 110 | 22 | 4 | +4° | |
| M-TPE-L4P-024 ◊ | 24 | 18 | 100 | 24 | 4 | +4° | |
| M-TPE-L4P-024L110 ◊ | 24 | 20 | 110 | 24 | 4 | +4° | |
| M-TPE-L4P-026 ◊ | 26 | 18 | 100 | 26 | 4 | +4° | |
| M-TPE-L4P-026L110 ◊ | 26 | 20 | 110 | 26 | 4 | +4° | |
| M-TPE-L4P-030 ◊ | 30 | 18 | 100 | 30 | 4 | +4° | |
| M-TPE-L4P-030L110 ◊ | 30 | 20 | 110 | 30 | 4 | +4° |
◊ The shank material can be HSS for the marked items.
