PCD End Mill Short Blade Four Flutes(Flutes Straight Angle)
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | End mill · 4 flutes |
| Axial angle | Straight |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

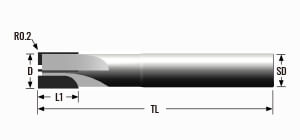

| Tool drawing | Order No. | D h7 mm | L1 mm | TL mm | SD h6 mm | Z flutes |
|---|---|---|---|---|---|---|
 | M-TPE-S4S-016 | 16 | 8 | 80 | 16 | 4 |
| M-TPE-S4S-016L105 | 16 | 8 | 105 | 16 | 4 | |
| M-TPE-S4S-020 ◊ | 20 | 8 | 85 | 20 | 4 | |
| M-TPE-S4S-020L105 ◊ | 20 | 8 | 105 | 20 | 4 | |
| M-TPE-S4S-022 ◊ | 22 | 8 | 85 | 22 | 4 | |
| M-TPE-S4S-022L105 ◊ | 22 | 8 | 105 | 22 | 4 | |
| M-TPE-S4S-024 ◊ | 24 | 8 | 85 | 24 | 4 | |
| M-TPE-S4S-024L105 ◊ | 24 | 8 | 105 | 24 | 4 | |
| M-TPE-S4S-026 ◊ | 26 | 8 | 105 | 26 | 4 | |
| M-TPE-S4S-026L110 ◊ | 26 | 10 | 110 | 26 | 4 | |
| M-TPE-S4S-030 ◊ | 30 | 10 | 105 | 30 | 4 | |
| M-TPE-S4S-030L110 ◊ | 30 | 10 | 110 | 30 | 4 |
◊ The shank material can be HSS for the marked items.
