PCD End Mill Short Blade Two Flutes One Blade Over Center Cut (Flutes Positive Angle)
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | End mill · 2 flutes |
| Axial angle | Positive · +3° / +4° |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

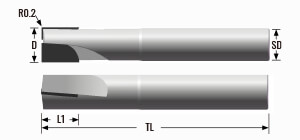

| Tool drawing | Order No. | D h7 mm | L1 mm | TL mm | SD h6 mm | Z flutes | a angle |
|---|---|---|---|---|---|---|---|
 | M-TPE-SO2P-003 | 3 | 6 | 60 | 6 | 2 | +3° |
| M-TPE-SO2P-004 | 4 | 6 | 60 | 6 | 2 | +3° | |
| M-TPE-SO2P-005 | 5 | 6 | 60 | 6 | 2 | +3° | |
| M-TPE-SO2P-006 | 6 | 7 | 60 | 6 | 2 | +3° | |
| M-TPE-SO2P-008 | 8 | 7 | 70 | 8 | 2 | +4° | |
| M-TPE-SO2P-010 | 10 | 7 | 80 | 10 | 2 | +4° | |
| M-TPE-SO2P-012 | 12 | 7 | 80 | 12 | 2 | +4° | |
| M-TPE-SO2P-014 | 14 | 7 | 100 | 14 | 2 | +4° | |
| M-TPE-SO2P-016 | 16 | 7 | 100 | 16 | 2 | +4° | |
| M-TPE-SO2P-018 | 18 | 7 | 100 | 18 | 2 | +4° | |
| M-TPE-SO2P-020 ◊ | 20 | 7 | 110 | 20 | 2 | +4° | |
| M-TPE-SO2P-022 ◊ | 22 | 7 | 110 | 22 | 2 | +4° |
◊ The shank material can be HSS for the marked items.
