PCD End Mill Short Blade Two Flutes One Blade Over Center Cut (Flutes Straight Angle)
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | End mill · 2 flutes |
| Axial angle | Straight |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

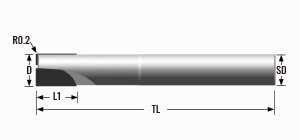

| Tool drawing | Order No. | D h7 mm | L1 mm | TL mm | SD h6 mm | Z flutes |
|---|---|---|---|---|---|---|
 | M-TPE-SO2S-003 | 3 | 6 | 60 | 4 | 2 |
| M-TPE-SO2S-004 | 4 | 6 | 60 | 4 | 2 | |
| M-TPE-SO2S-005 | 5 | 6 | 60 | 6 | 2 | |
| M-TPE-SO2S-006 | 6 | 7 | 60 | 6 | 2 | |
| M-TPE-SO2S-008 | 8 | 7 | 70 | 8 | 2 | |
| M-TPE-SO2S-010 | 10 | 7 | 80 | 10 | 2 | |
| M-TPE-SO2S-012 | 12 | 7 | 80 | 12 | 2 | |
| M-TPE-SO2S-014 | 14 | 7 | 100 | 14 | 2 | |
| M-TPE-SO2S-016 | 16 | 7 | 100 | 16 | 2 | |
| M-TPE-SO2S-018 | 18 | 7 | 100 | 18 | 2 | |
| M-TPE-SO2S-020 ◊ | 20 | 7 | 110 | 20 | 2 | |
| M-TPE-SO2S-022 ◊ | 22 | 7 | 110 | 22 | 2 |
◊ The shank material can be HSS for the marked items.
