PCD Single Flute End Mill (Cutting Over or Not Center)
Workpiece Material
NNon-ferrous metals
Specification and Application
| Tech data | |
|---|---|
| Cutting material | PCD |
| Geometry | End mill · 1 flute |
| Axial angle | Straight |
| Tolerance | D h7 · SD h6 |
| How to order | Contact Us |
| Download catalogue | Download PDF |

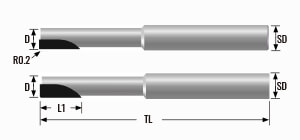

| Tool drawing | Order No. | D h7 mm | L1 mm | TL mm | SD h6 mm | Z flutes |
|---|---|---|---|---|---|---|
 | M-TPE-S1S-003 | 3 | 4 | 60 | 4 | 1 |
| M-TPE-S1S-004 | 3 | 8 | 60 | 4 | 1 | |
| M-TPE-S1S-004SD6 | 4 | 4 | 70 | 6 | 1 | |
| M-TPE-SO1S-003 | 3 | 4 | 60 | 4 | 1 | |
| M-TPE-SO1S-004 | 3 | 8 | 60 | 4 | 1 | |
| M-TPE-SO1S-004SD6 | 4 | 4 | 70 | 6 | 1 |
Catalogue D07 lists D = 3 mm for M-TPE-S1S-004 and M-TPE-SO1S-004. Confirm these dimensions before ordering.
