Step Reamer vs. Step Drill: What’s the Difference

Step Reamer vs. Step Drill: What's the Difference

Step Reamer vs. Step Drill

   In the realm of machining and drilling, precision and efficiency are paramount. When it comes to expanding holes or creating stepped holes, two common tools stand out: step reamers and step drills. While they might seem similar at first glance, these tools have distinct purposes and applications. If you’re looking to understand the difference between step reamers and step drills, you’re in the right place. In this article, we’ll take an in-depth look at these tools, their functions, and the scenarios where each shines.

What is the difference between a step reamer and a step drill?

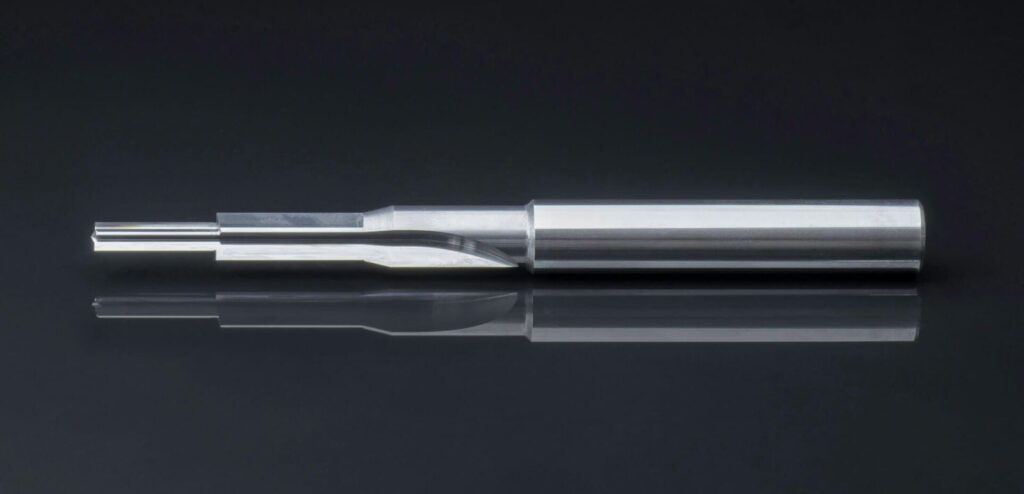

  • Step Reamer:

Function and Purpose: A step reamer is a cutting tool that finishes prepared stepped holes to specified diameters. It can also produce countersinks or chamfers only when it has cutting features designed for those operations; they are not inherent capabilities of every step reamer.

Design and Features: A step reamer has distinct cutting diameters and axial step lengths matched to the required hole profile. Each reaming section removes its specified allowance from a prepared hole. It should not be confused with a taper reamer or a general-purpose sheet-metal step drill.

Application Areas: Step reamers are primarily used when the requirement is to achieve accurate diameter transitions within existing holes. This is particularly crucial in industries where tight tolerances and precise fits are essential, such as aerospace and precision manufacturing.

Advantages: A suitable step reamer can finish multiple specified diameters with one tool. Surface finish and dimensional accuracy still depend on the prepared hole, allowance at each step, tool alignment, rigidity, and cutting conditions.

Step Drill:

Function and Purpose: A step drill is a specialized drilling tool whose application depends on its design. A sheet-metal step drill enlarges a hole to a selected diameter in suitably thin material. A purpose-designed production step drill can machine a specified stepped-hole profile, or combine drilling with another feature, within its approved cutting limits.

Design and Features: Sheet-metal step drills usually have a succession of increasing diameters; the usable length of each step limits the thickness that can be drilled to that diameter. Production step drills instead have diameters, step lengths, and cutting features designed for a particular hole. Check whether the tool is approved for drilling from solid or requires a prepared hole.

Application Areas: Sheet-metal step drills are useful for selecting different hole sizes in panels and similar thin workpieces. Production step drills serve defined hole geometries in suitable materials and machines. Select by tool design and permitted thickness or depth, not by the name alone.

Advantages: A sheet-metal step drill offers several selectable hole diameters without changing tools. A purpose-designed production step drill may combine operations on a specified stepped hole. These benefits do not make the two designs interchangeable.

A step reamer primarily finishes prepared hole diameters. A sheet-metal step drill opens or enlarges holes to selected sizes within its thickness limit, while a production step drill machines the profile for which it was designed. Choose according to the drawing, material, starting hole, and required finish.

What size Drill should I use with a Reamer?

When using a reamer, it’s important to select an appropriate drill size to ensure proper hole preparation and achieve the desired reamed hole dimensions. The drill size used in conjunction with a reamer is often referred to as the “pre-reaming” or “pre-drill” size. Here’s how to determine the right drill size to use with a reamer:

Read: Consult the specifications provided by the manufacturer of the reamer. Reamer manufacturers usually provide recommendations for the appropriate pre-drill size to use with their reamers. These recommendations are based on the desired reamed hole size and the material being machined.

Understand Reaming Allowance: The prepared hole must leave the stock required by the specific reamer. Distinguish diametral allowance from radial stock per side, and do not confuse either with the finished-hole tolerance. For a step reamer, check allowance and depth at every diameter.

Determine the Pre-Hole Size: Use the supplier’s allowance for the actual reamer, diameter, and work material. If the recommendation is a diametral allowance, subtract it from the target finished diameter to obtain the nominal prepared-hole size. If it is radial stock per side, subtract twice that amount. Verify the actual prepared hole, since drill diameter alone does not guarantee hole size. Do not apply a universal percentage when tool-specific guidance is unavailable.

Consider Material Characteristics: Select allowance using the work material, its condition, the reamer design, and the supplier’s guidance. Harder material does not automatically require a larger allowance. Too much stock can overload the tool, while too little can prevent effective cutting or removal of the existing surface.

Test and Verify: Confirm the proposed preparation and reaming process on representative material using the intended setup. Measure each required diameter, step depth, and surface finish before applying the process to production parts.

Incorrect preparation can cause poor hole quality, size errors, and premature tool wear. Obtain a recommended allowance for the specific tool and material, measure the prepared hole, and verify the result in a controlled trial. If suitable guidance is missing, clarify the process with the tool supplier rather than relying on a universal percentage.
