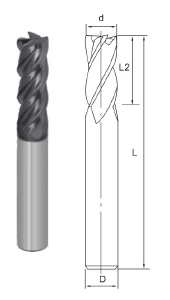

4 Flutes Unequal Spiral End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | SUS |
| Coating | BALZERS |
| Coating color | Violet Black |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Read Online |
| 4 Flutes Unequal Spiral End Mill | Item Code | Outside Diameter | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
 | SUSST4-010 | 1.0 | 3.0 | 50 | 4 |
| SUSST4-020 | 2.0 | 6.0 | 50 | 4 | |
| SUSST4-030 | 3.0 | 8.0 | 50 | 3 | |
| SUSST4-040 | 4.0 | 11.0 | 50 | 4 | |
| SUSST4-060 | 6.0 | 15.0 | 50 | 6 | |
| SUSST4-080 | 8.0 | 20.0 | 60 | 8 | |
| SUSST4-100 | 10.0 | 30.0 | 75 | 10 | |
| SUSST4-120 | 12.0 | 30.0 | 75 | 12 | |
| SUSST4-160 | 16.0 | 40.0 | 100 | 16 | |
| SUSST4-200 | 20.0 | 45.0 | 100 | 20 |
