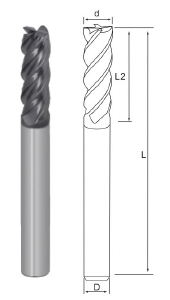

Long Shank Unequal Spiral End Mill/4 Flutes
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | SUS |
| Coating | BALZERS |
| Coating color | Violet Black |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Read Online |
| Long Shank Unequal Spiral End Mill /4 Flutes | Item Code | Outside Diameter | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
 | SUSFSL4-010 | 1.0 | 3.0 | 75 | 4 |
| SUSFSL4-020 | 2.0 | 6.0 | 75 | 4 | |
| SUSFSL4-040 | 4.0 | 11.0 | 75 | 4 | |
| SUSFSL4-060 | 6.0 | 15.0 | 75 | 6 | |
| SUSFSL4-080 | 8.0 | 20.0 | 75 | 8 | |
| SUSFSF4-040 | 4.0 | 11.0 | 100 | 4 | |
| SUSFSF4-060 | 6.0 | 15.0 | 100 | 6 | |
| SUSFSF4-100 | 10.0 | 30.0 | 100 | 10 | |
| SUSFSJ4-120 | 12.0 | 30.0 | 150 | 12 | |
| SUSFSJ4-200 | 20.0 | 60.0 | 150 | 20 |
